Core Veneer Composer machine

METRO MACH is one joint enterprise by Linyi Metro Int’l Trading Co., Limited (For Export Purpose) and Linyi NewTianLi Machinery Co., LTD. (For Manufacture Purpose) is located in Yitang Town wood industry zone, Lanshan District, Linyi City, Shandong Province, which is the world's largest wood-based panel and plywood production base.

lovialiu@metromach.com

Description

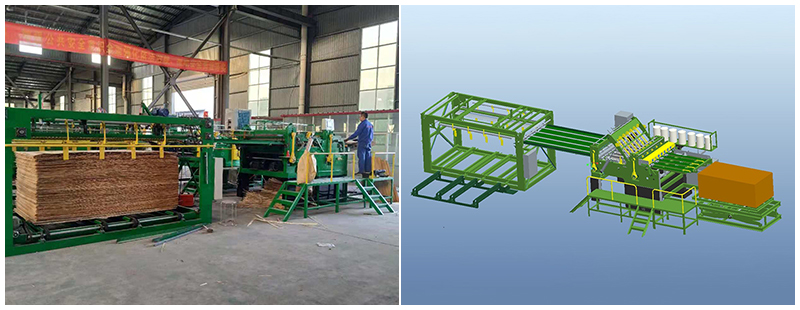

Core Veneer Composer machine(图1)

LINYI SIN SAN LIN SMART MACHINERY CO.,LTD

-Professional manufacturer of wood-based panel machinery-

LINYI,CHINA.

Servo motor automatic core composer line

1 person operate! max.350sheets / hour !!

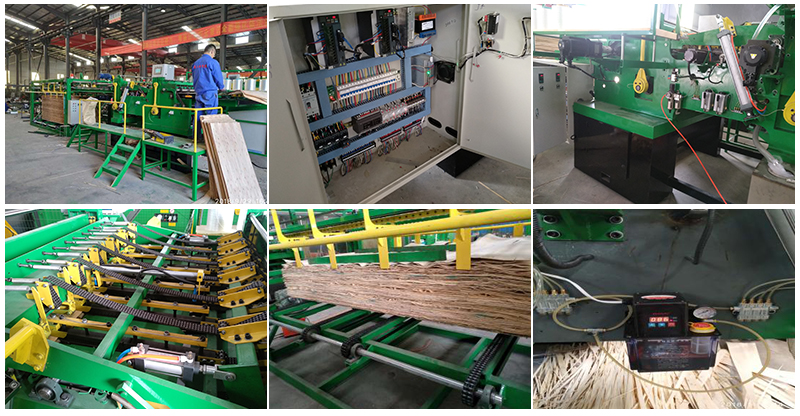

Core Veneer Composer machine(图2)

Main instructions:

This machine is mainly used for producing 2.0-30mm thickness plywood,LVL,basic flooring, furniture boards, film faced plywood,container boards and so on.

Main features:

1.Easy to operate and save workers cost: one worker operate, from the veneers in-feeding, thickness testing,holes cutting,width testing,gluing and composing,to final automatic stacker.This whole process is fully automatic.

2.High precision thickness testing system, make the product uniform and minimum sanding.

3.Germany advanced brake clutch control technology and synchronous driving system make sure avoid overlaying and gap.

4.High temperature-resistant and strength-resistant hot melt silk enhance the longitudinal tensile and flexibility,it is most efficient for 2.0-6.0mm thin boards.

5.PLC micro-computer control, easy to operate and high efficiency.

6.All the spare parts adopt world famous brands such as Germany Festo, Denmark Danforth, Japan Mitsubishi and so on.

Technical specifications:

●standard ○ optional	Model :DCBJ-9C(4x8)
Machine brand	SIN SAN LIN Brand
Driver	Servo-type
LWH	1200026002500mm
Structure	Integral steel plate laser cutting
Transmission speed	0-35m/minute adjustable
Working efficiency	300pcs/h
Composing machine length(mm)	3600mm
Composing machine height(mm)	2500mm
Composing machine width(mm)	2600mm
Stacker length(mm)	4000mm
Stacker height (mm)	2500mm
Stacker width (mm)	2200mm
PLC computer module	Delta PLC(Tai wan)
Total weight	6500kg
Total power	16.5kw
Front driver	Siemens servo motor 3.5kw
Rear driver	Siemens servo motor 3.5kw
Edge cutter driver	Motor + CHAIN TAIL clutch brake(Tai wan)
Front drive reducer	Newstart reducer 8/1(CHINA)
Rear drive reducer	Newstart reducer 8/1 (CHINA)
Rotary actuator	FESTO(Germany)
Automatic core veneer corrector	●
Water cooling air condition	●
Electric lateral platform	●
44-48 electric conversion	●
Machine color	○
Elevator-platform	●
Speed control	●
Finished panel Counter	●
Notice: Our company is responsible for the installation, debugging and providing the perennial after-sales service. Cost is on buyer’s account.
